Cargo TrailersModel: QT-CTSA

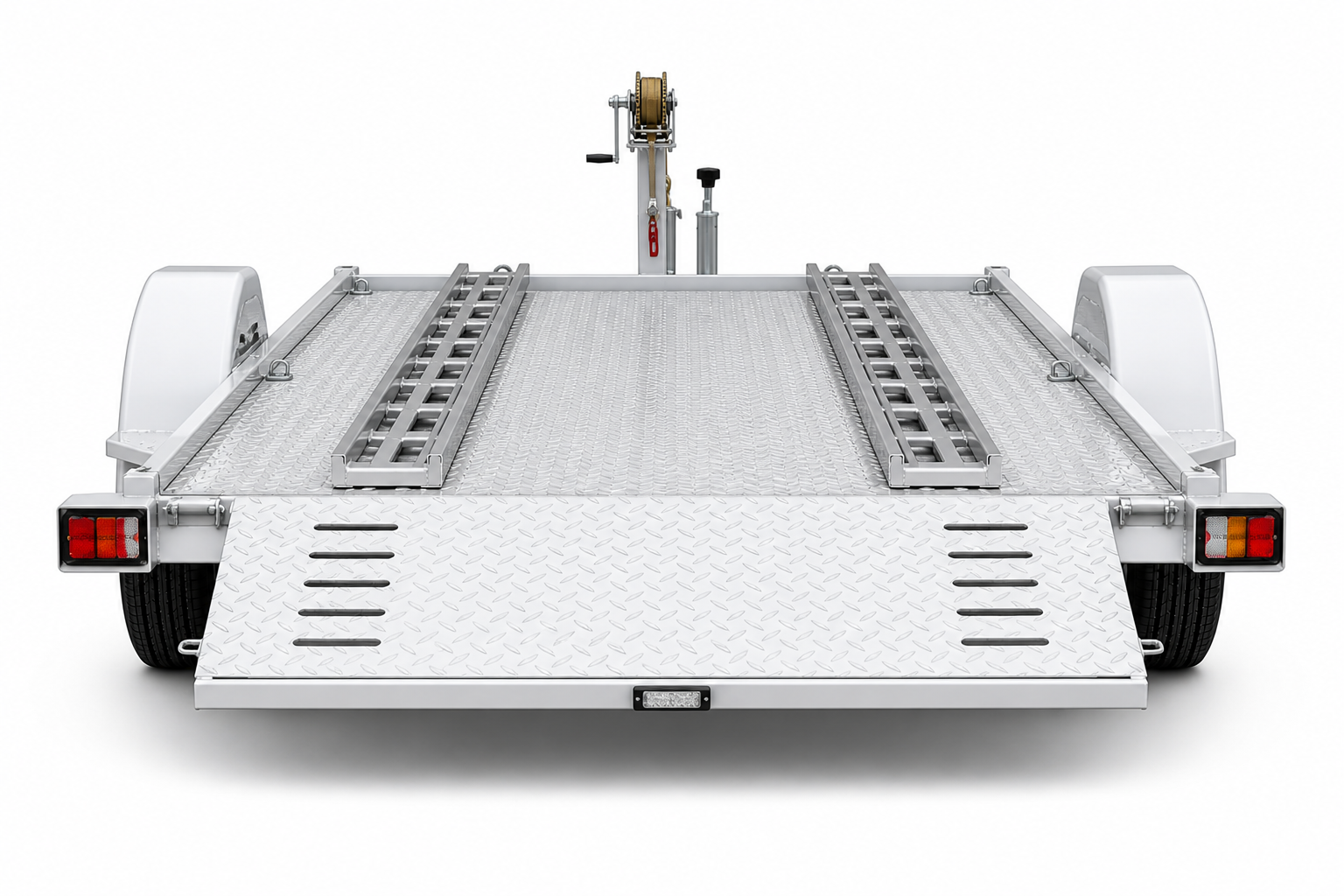

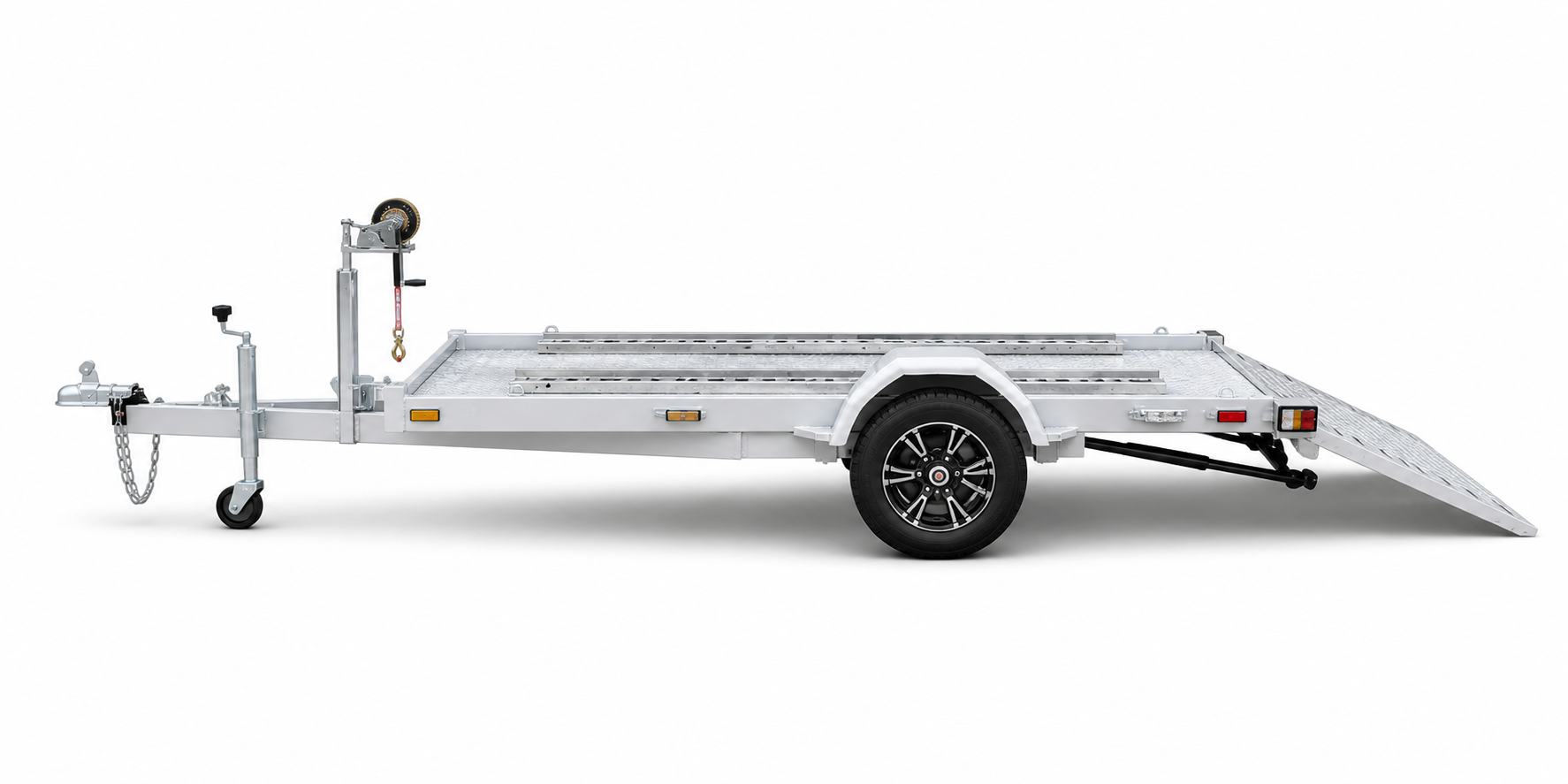

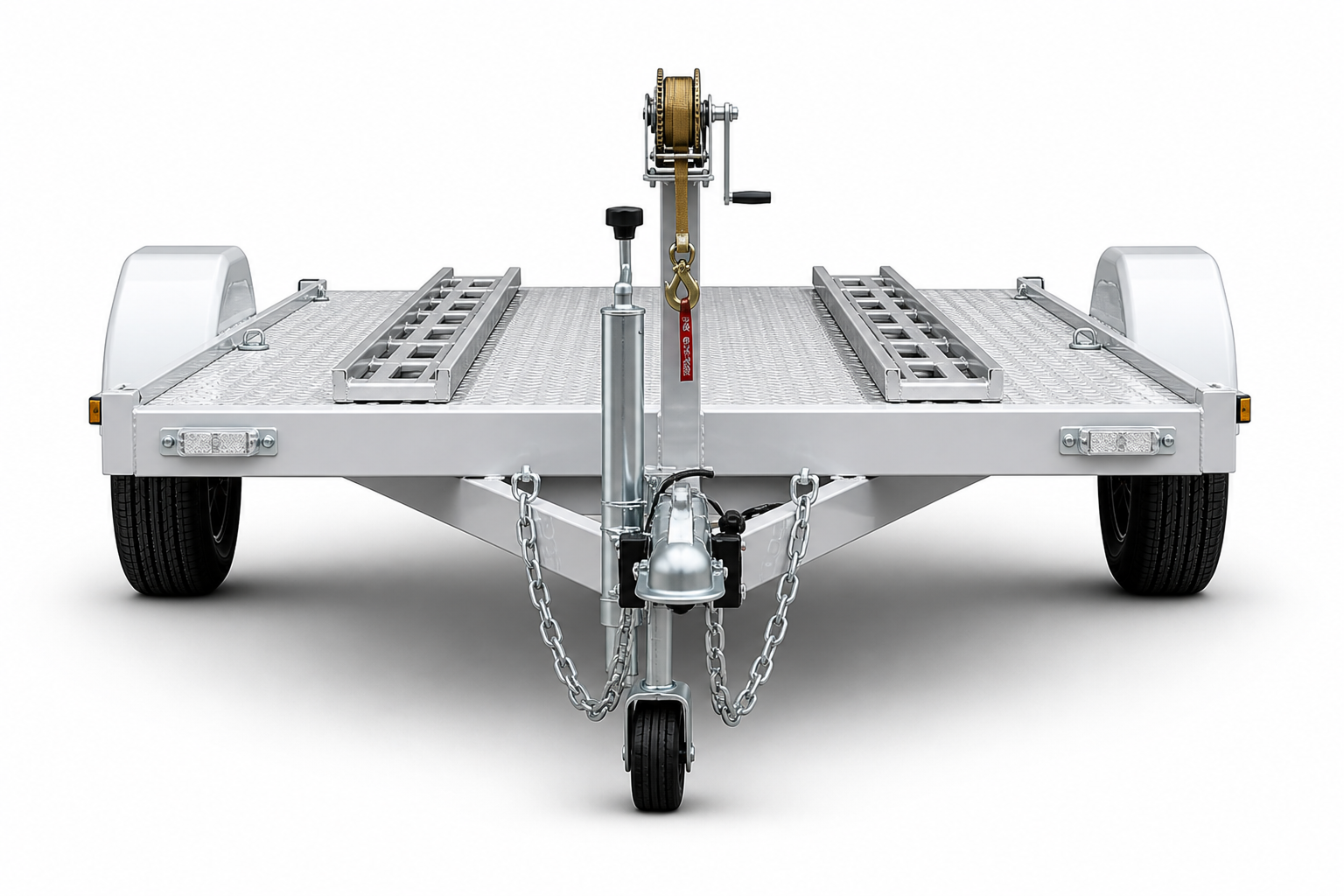

Car Trailer Single Axle 1500kg
R 55 000
incl. VAT, ex-worksIn stock — ready for dispatch
Single-axle car trailer with hydraulic ramp, winch point, and tie-down rails.
Key features
- Hydraulic ramp
- Winch mount included
- Tie-down rails
Specifications
1. GENERAL
- Type
- Car Carrier
- GVM
- 1500kg
2. CHASSIS/FRAME
- Chassis Material
- 100mm x 50mm x 5mm Open Channel
- A-Frame Material
- 76mm x 38mm x 5mm Open Channel
- Construction
- Ladder frame – Extended Neck
- Corrosion Resistance
- Painted 2K Duco
3. BODY/DECK
- Size
- 4.0m x 2.0m Loadbed
- Floor Material
- 2.5mm Checker Plate Steel with Anti-Slip Grip
- Headboard
- 400mm Fixed Front Stop Bar
- Side Rails/Panels
- Low-Profile Perimeter Rails with Lashing Points
- Tailgate/Rear Gate
- None – Open Rear with Ramp
- Ramp
- 1 x Full-Width Hydraulic Loading Ramp
- Winch Mount
- Front-Mounted Winch Plate Included
- Anchor Points
- 4 x Wheel Chock Rings + 4 x Side Lashing Rings
4. AXLES/WHEELS
- Number of Axles
- 1
- Axle Type
- 1020mm, 8-Blade HD Leaf Springs
- Axle Capacity
- 1600kg
- Wheels
- 14"
- Spare Wheel
- 14" on the A-Frame
- Jockey Wheel
- 60mm in Front
5. COUPLER/BRAKES
- Coupler Capacity
- 2000kg
- Brakes
- Yes
6. LIGHTING
- Type
- 12V LED Lights
7. AVAILABLE UPGRADES
- Winch
- Electric winch available on request
- Axles
- Double-axle upgrade available on request
- Colour
- Available in White, Black, Silver or Custom
More from Cargo Trailers
QT-LUG500In stock

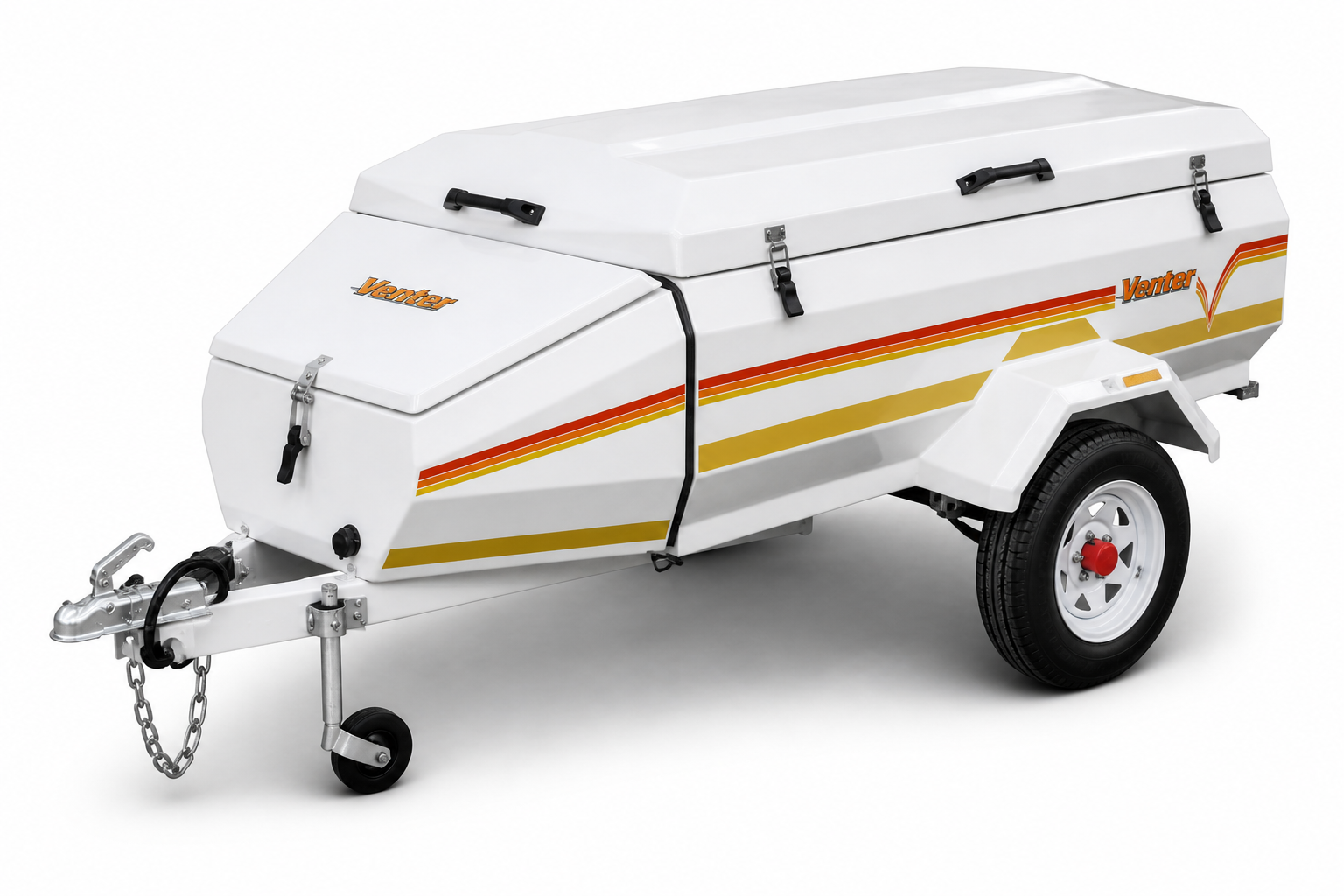

Luggage Trailer 500kg
Compact luggage trailer with lockable hard lid — perfect for road trips, holiday haulage, and small business deliveries.
Price (incl.)
R 15 000
QT-MP750In stock

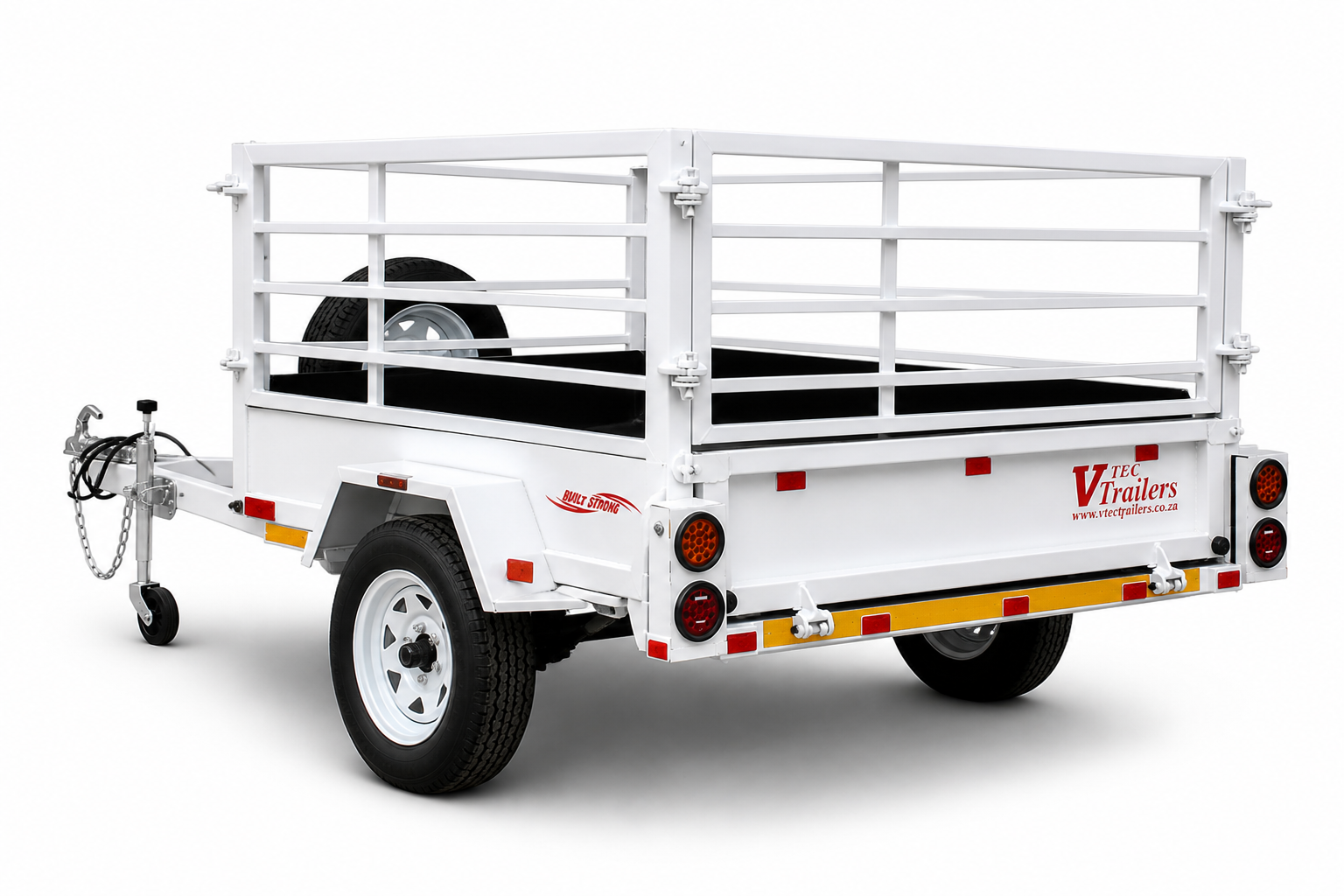

Multi-Purpose Trailer 750kg
Workhorse 750kg multi-purpose trailer with removable mesh sides — moves anything from rubble to garden waste.
Price (incl.)
R 18 000
QT-MP1000In stock

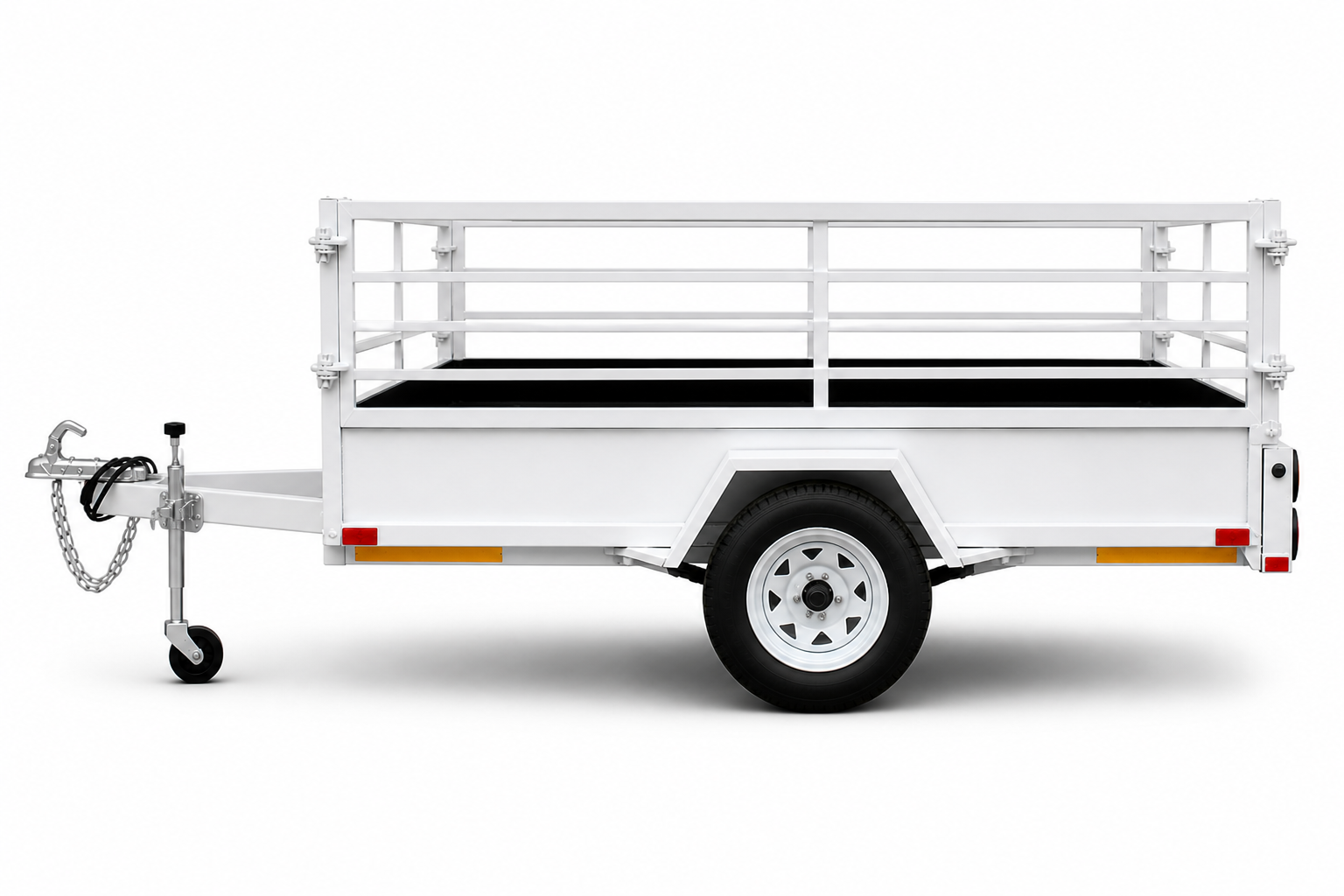

Multi-Purpose Trailer 1000kg
