Cargo TrailersModel: QT-HD3500

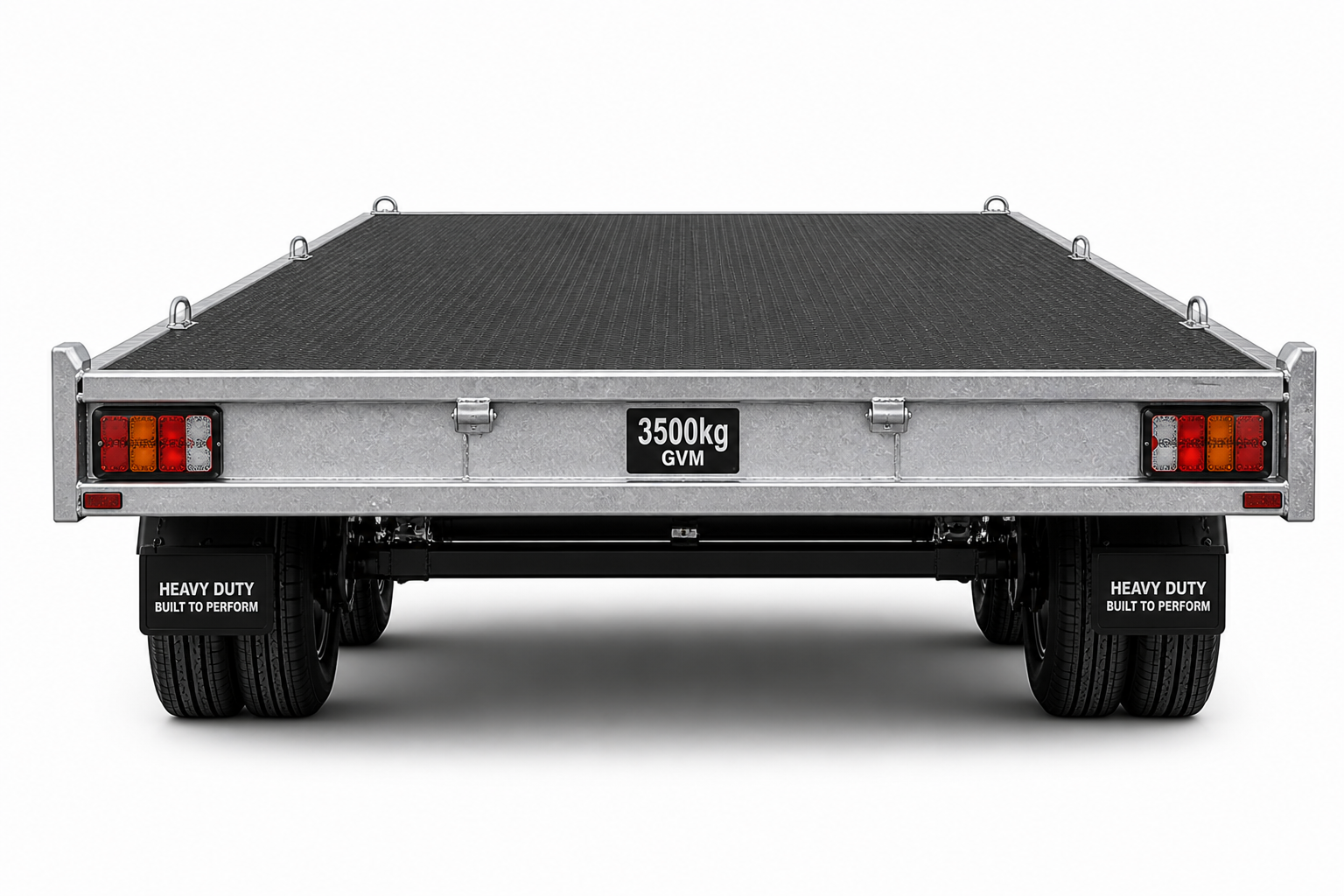

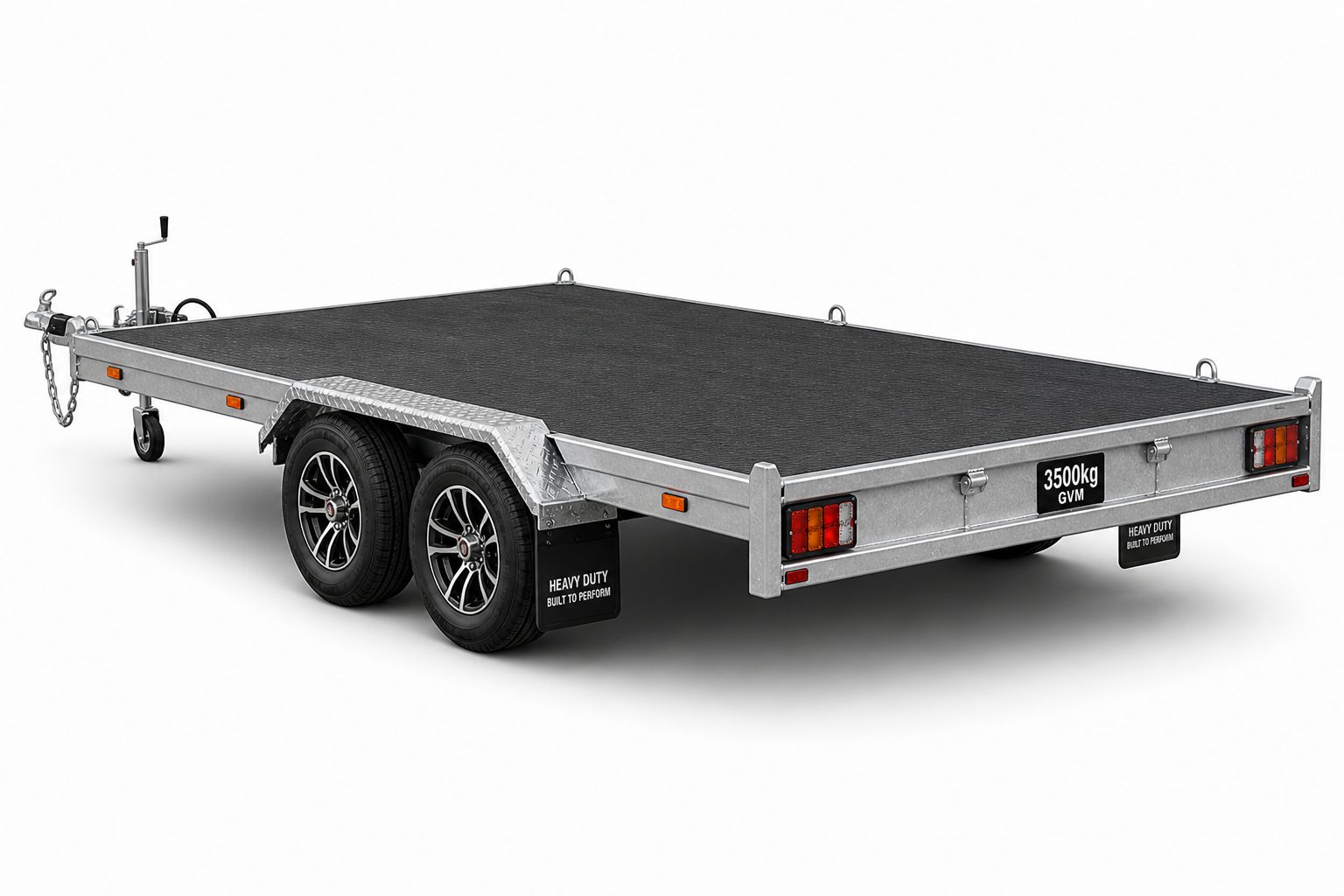

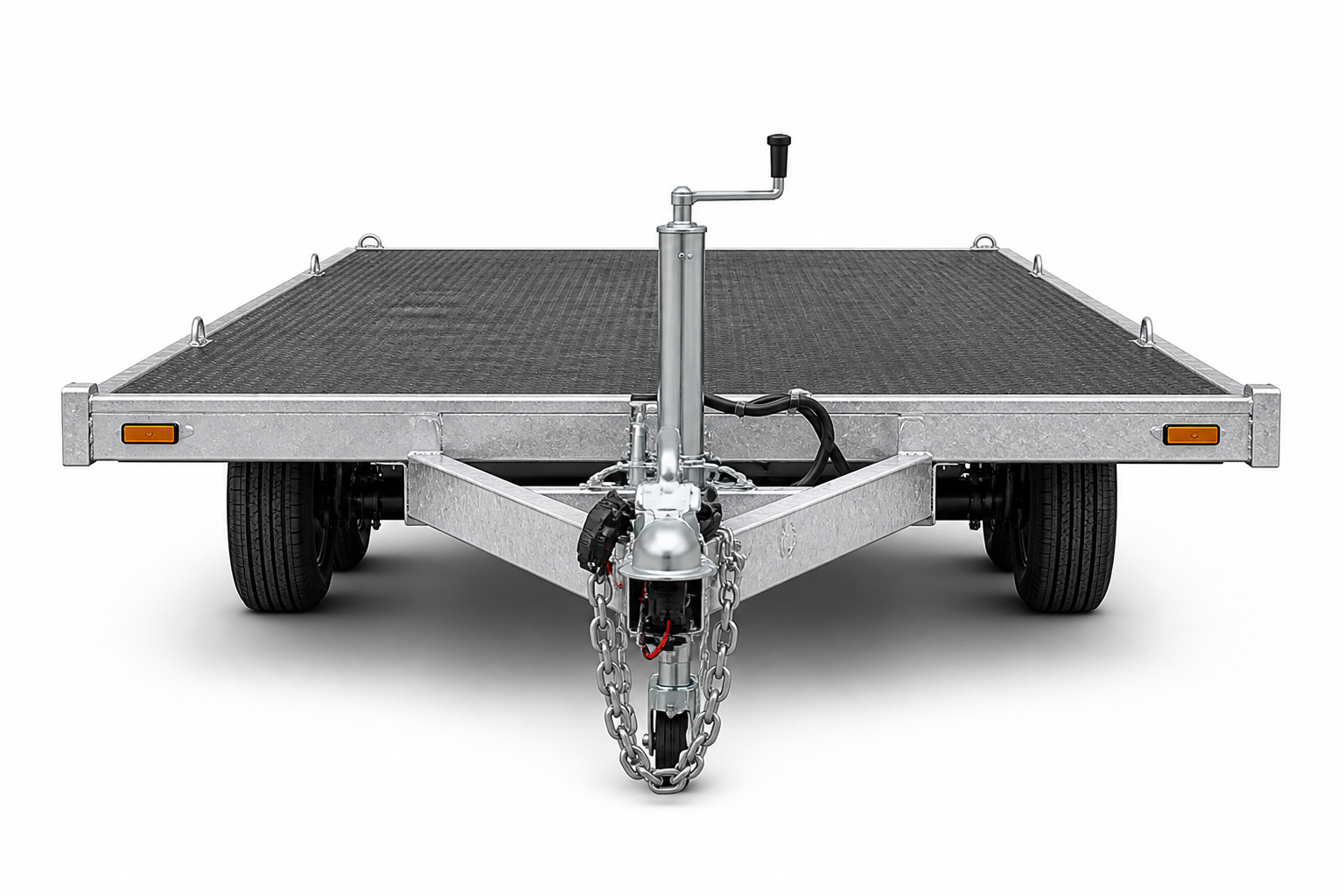

Heavy-Duty Cargo Trailer 3500kg
R 99 000
incl. VAT, ex-worksIn stock — ready for dispatch
Our flagship 3500kg cargo trailer — reinforced chassis, electric brakes, and tandem axles. Built for serious commercial haulage.
Key features
- 3500kg GVM
- Electric brakes
- Tandem axles
- Commercial-grade chassis
Specifications
1. GENERAL
- Type
- Heavy-Duty Cargo
- GVM
- 3500kg
2. CHASSIS/FRAME
- Chassis Material
- 150mm x 65mm x 6mm Open Channel
- A-Frame Material
- 100mm x 50mm x 6mm Open Channel
- Construction
- Ladder frame – Heavy Commercial Grade
- Corrosion Resistance
- Painted 2K Duco
3. BODY/DECK
- Size
- 4.5m x 2.0m
- Floor Material
- 3.0mm Checker Plate Steel – Heavy-Duty Cross Members at 600mm Centres
- Headboard
- 600mm Fixed Headboard – Built from 75mm Square Tube
- Side Rails/Panels
- Removable Heavy-Duty Side Rails
- Tailgate/Rear Gate
- Heavy-Duty Drop-Down Tailgate with Safety Chains and Pin Lock
- Anchor Points
- 10 x Heavy-Duty Lashing Rings
4. AXLES/WHEELS
- Number of Axles
- 2 (Tandem)
- Axle Type
- 1400mm, 10-Blade HD Leaf Springs
- Axle Capacity
- 2000kg each
- Wheels
- 15"
- Spare Wheel
- 15" on the A-Frame
- Jockey Wheel
- 60mm Heavy-Duty in Front
5. COUPLER/BRAKES
- Coupler Capacity
- 3500kg
- Brakes
- Yes – Electric Over-Run Brakes on Both Axles
6. LIGHTING
- Type
- 12V LED Lights with Marker Lights
7. AVAILABLE UPGRADES
- Sides
- Full dropsides or mesh sides available on request
- Floor
- Hardwood timber deck available on request
- Axles
- Air-ride suspension upgrade available on request
- Colour
- Available in White, Black, Green or Custom
More from Cargo Trailers
QT-LUG500In stock

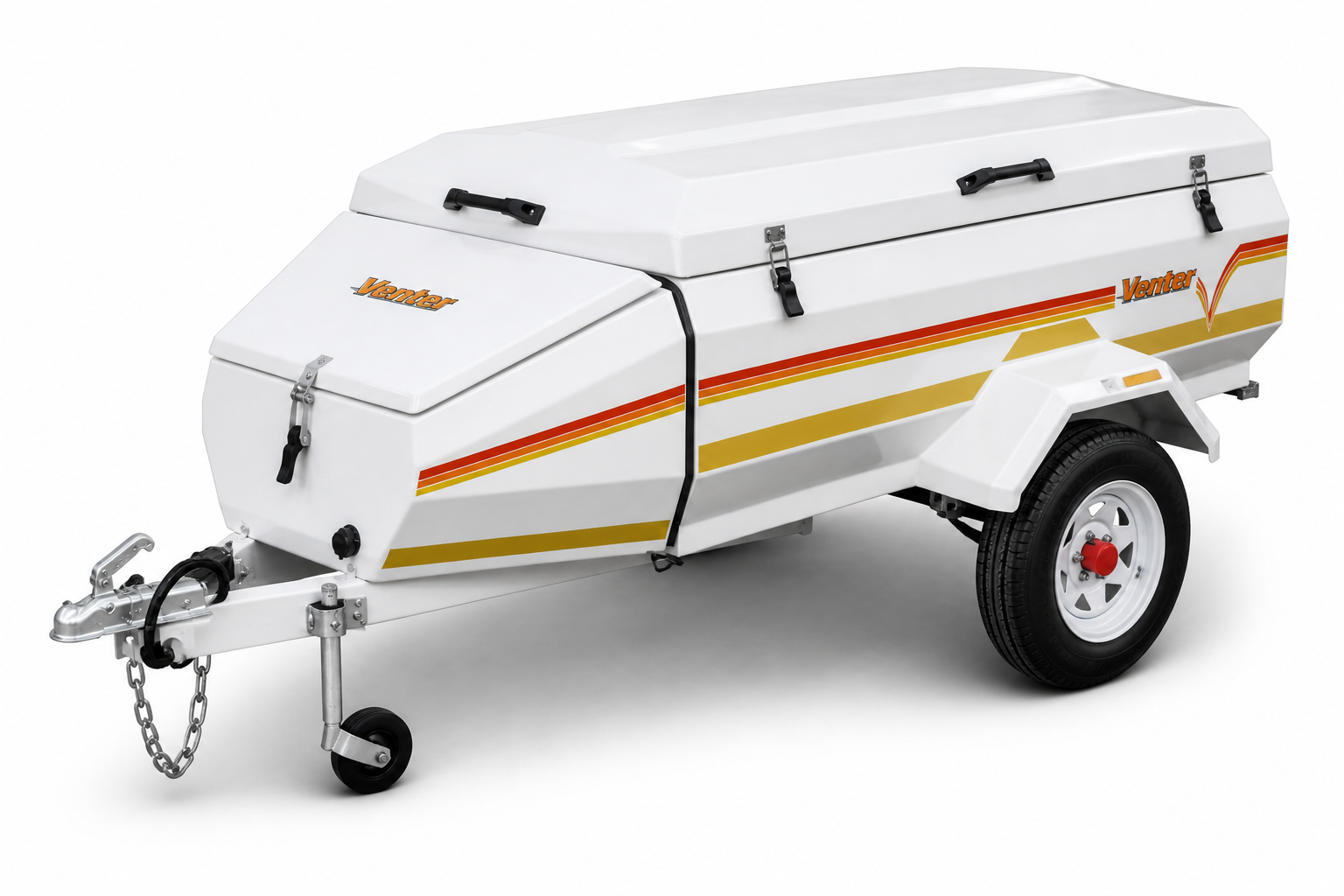

Luggage Trailer 500kg
Compact luggage trailer with lockable hard lid — perfect for road trips, holiday haulage, and small business deliveries.
Price (incl.)
R 15 000
QT-MP750In stock

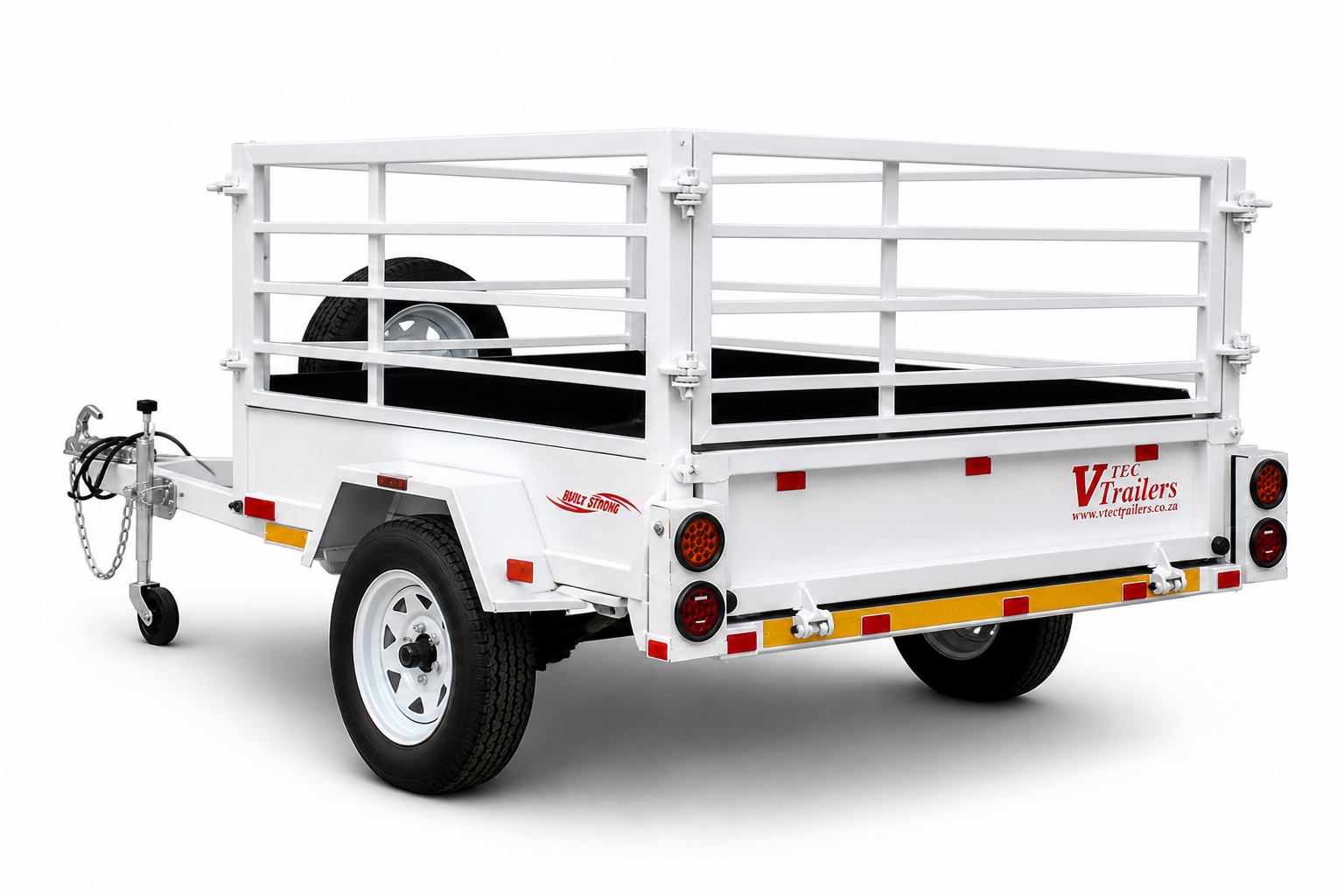

Multi-Purpose Trailer 750kg
Workhorse 750kg multi-purpose trailer with removable mesh sides — moves anything from rubble to garden waste.
Price (incl.)
R 18 000
QT-MP1000In stock

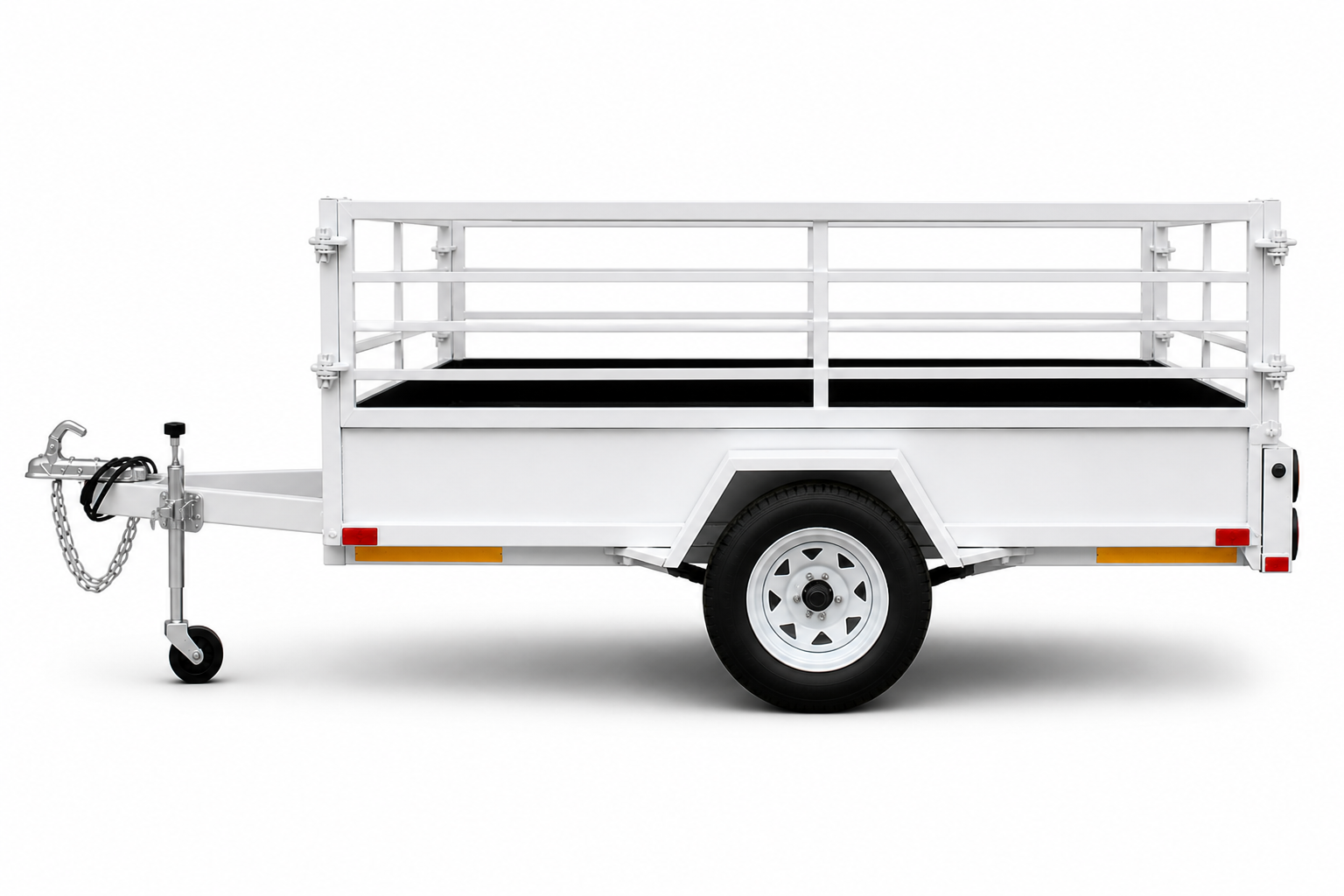

Multi-Purpose Trailer 1000kg
