Mobile Chillers & FreezersModel: QT-CH500

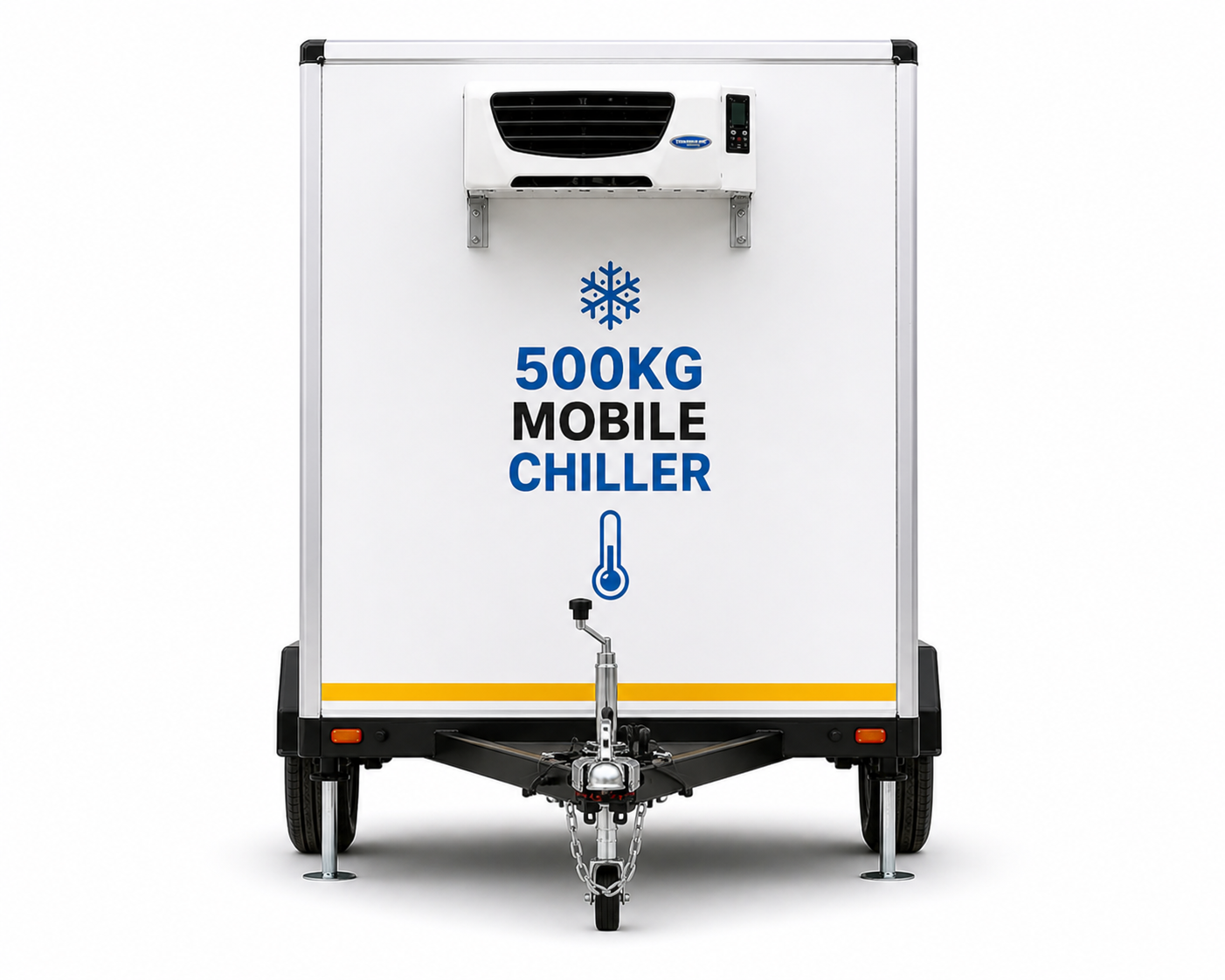

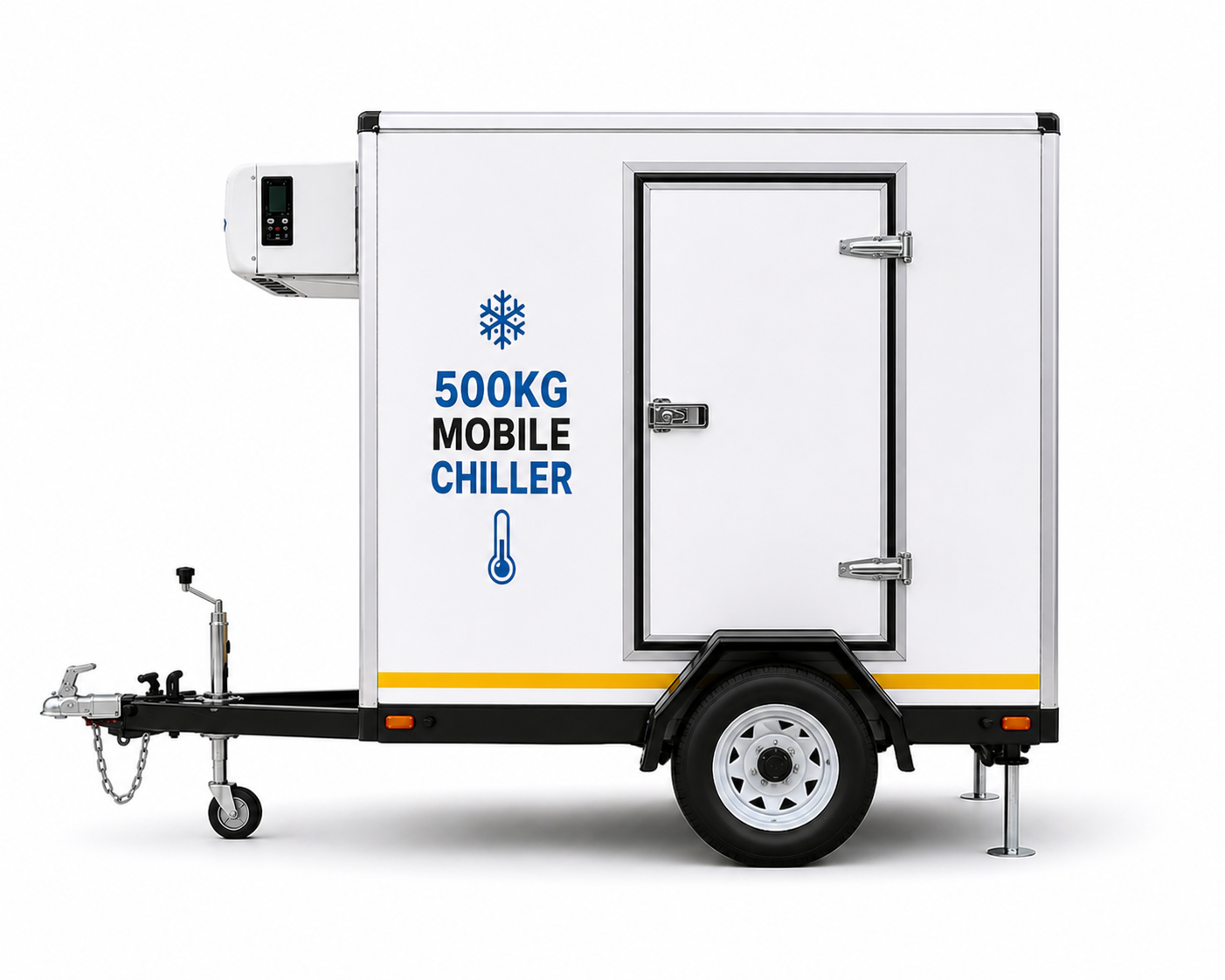

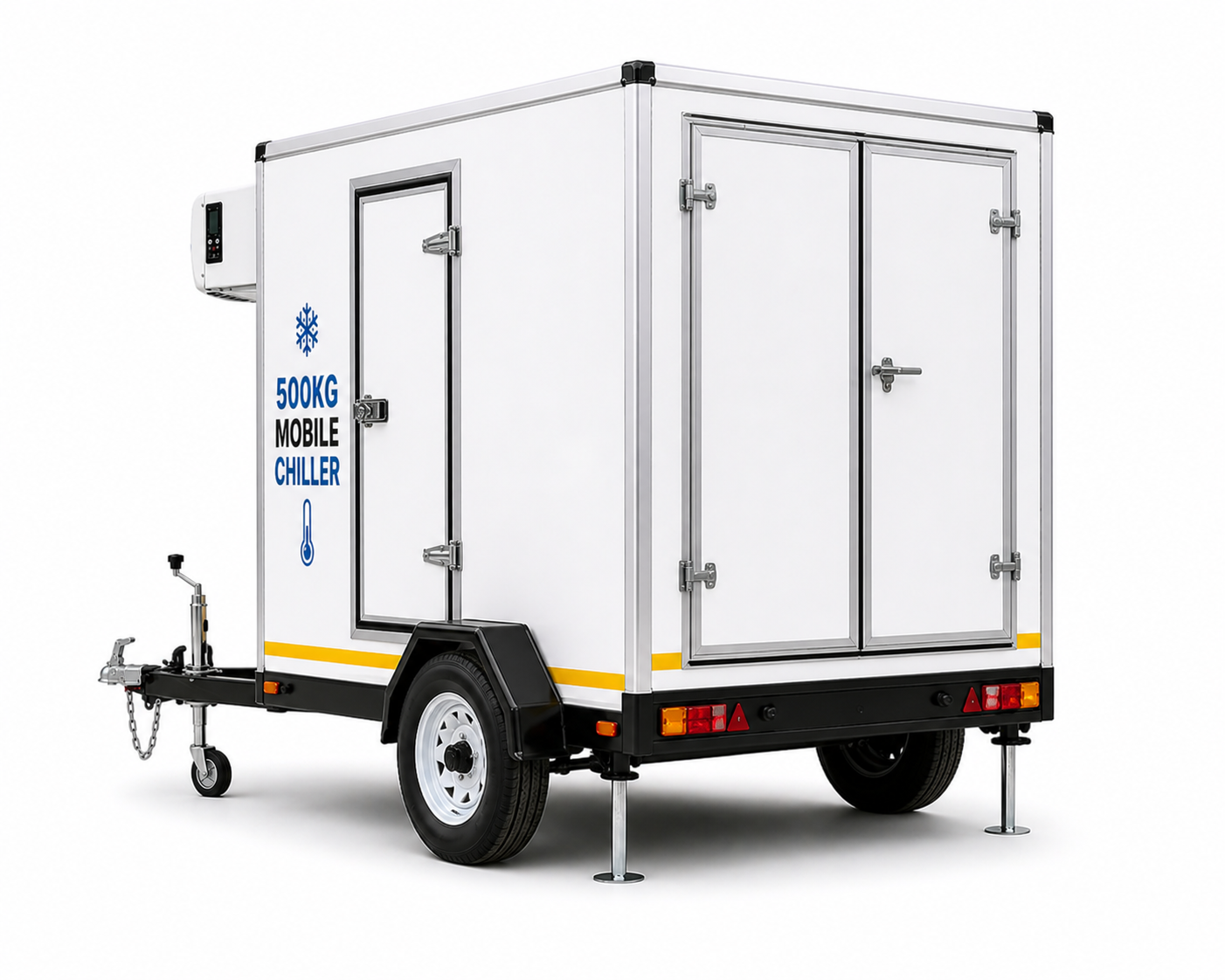

500KG Mobile Chiller
R 49 999
incl. VAT, ex-worksIn stock — ready for dispatch
Mobile refrigerated trailer with 500KG capacity, holding temperatures from 0°C to 8°C. Built for cold-chain transport of fresh produce, beverages, and dairy.
Key features
- 0–8°C range
- 75mm PU insulation
- Stainless interior
- 220V mains powered
Specifications
1. GENERAL
- Type
- Mobile Refrigerated Chiller Trailer
- Capacity
- 500KG
- Temperature Range
- 0°C to 8°C (Fresh Produce Range)
- GVM
- 1500kg
- Application
- Fresh Produce, Beverages, Dairy, Cold-Chain Transport
2. TRAILER STRUCTURE
- Chassis
- Galvanised Steel Trailer Frame – Corrosion Resistant
- Body
- Fully Enclosed Insulated Panelled Box Body
- Floor
- Aluminium Checker Plate – Non-Slip, Easy Clean
- Tow Hitch
- 50mm Ball Hitch with Safety Chains
- Stabilisers
- Corner Stabiliser Jacks
- Wheels
- Road-Legal Tyres
- Exterior Lighting
- LED Road Lights
3. INSULATION & PANELS
- Panel Type
- Polyurethane (PU) Injected Sandwich Panels
- Panel Thickness
- 75mm – Fresh-Produce Grade
- Door
- Heavy-Duty Insulated Access Door with Cam Lock
- Door Seal
- Full Perimeter Magnetic Gasket Seal
- Thermal Bridge
- Thermal Break at All Panel Joins
4. REFRIGERATION SYSTEM
- Compressor
- Heavy-Duty Refrigeration Condensing Unit
- Cooling Range
- 0°C to 8°C
- Refrigerant
- R404A or Equivalent
- Condenser
- Air-Cooled External Condenser
- Evaporator
- Internal Roof-Mounted Evaporator Coil
5. INTERIOR
- Wall Finish
- Stainless Steel Lining – Hygienic and Easy Clean
- Floor
- Aluminium Checker Plate with Drainage Channel
- Ceiling
- Insulated Stainless Steel Ceiling Panel
- Internal Drain
- Floor Drain Point for Washdown
6. ELECTRICAL SYSTEM
- Primary Power
- 220V Shore Power (Standard Mains Plug)
- Alternative Power
- 12V DC Battery / Vehicle Power Option
- Temperature Control
- Digital Thermostat Controller
- Temperature Display
- Internal and External Temp Readout
- Alarm
- High-Temperature Audible Alarm
7. AVAILABLE UPGRADES
- Shelving
- Internal stainless steel shelving available on request
- Generator
- Petrol or diesel generator set available on request
- Monitoring
- Remote temperature monitoring unit available on request
- Size
- Larger 1000KG or 1500KG capacity available on request
- Branding
- Custom exterior wrap available on request
More from Mobile Chillers & Freezers
QT-FZ500In stock

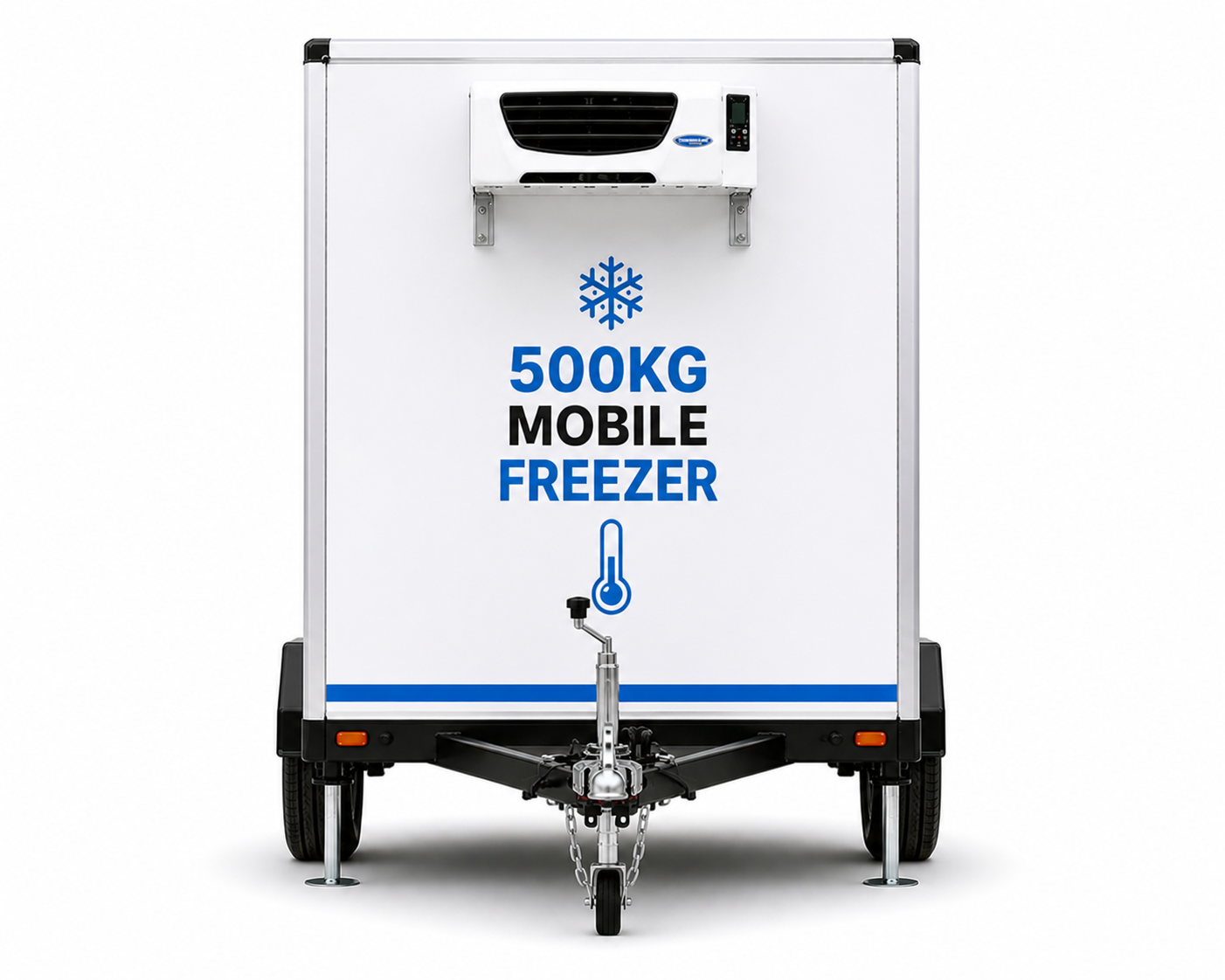

500KG Mobile Freezer
