Mobile Chillers & FreezersModel: QT-FZ500

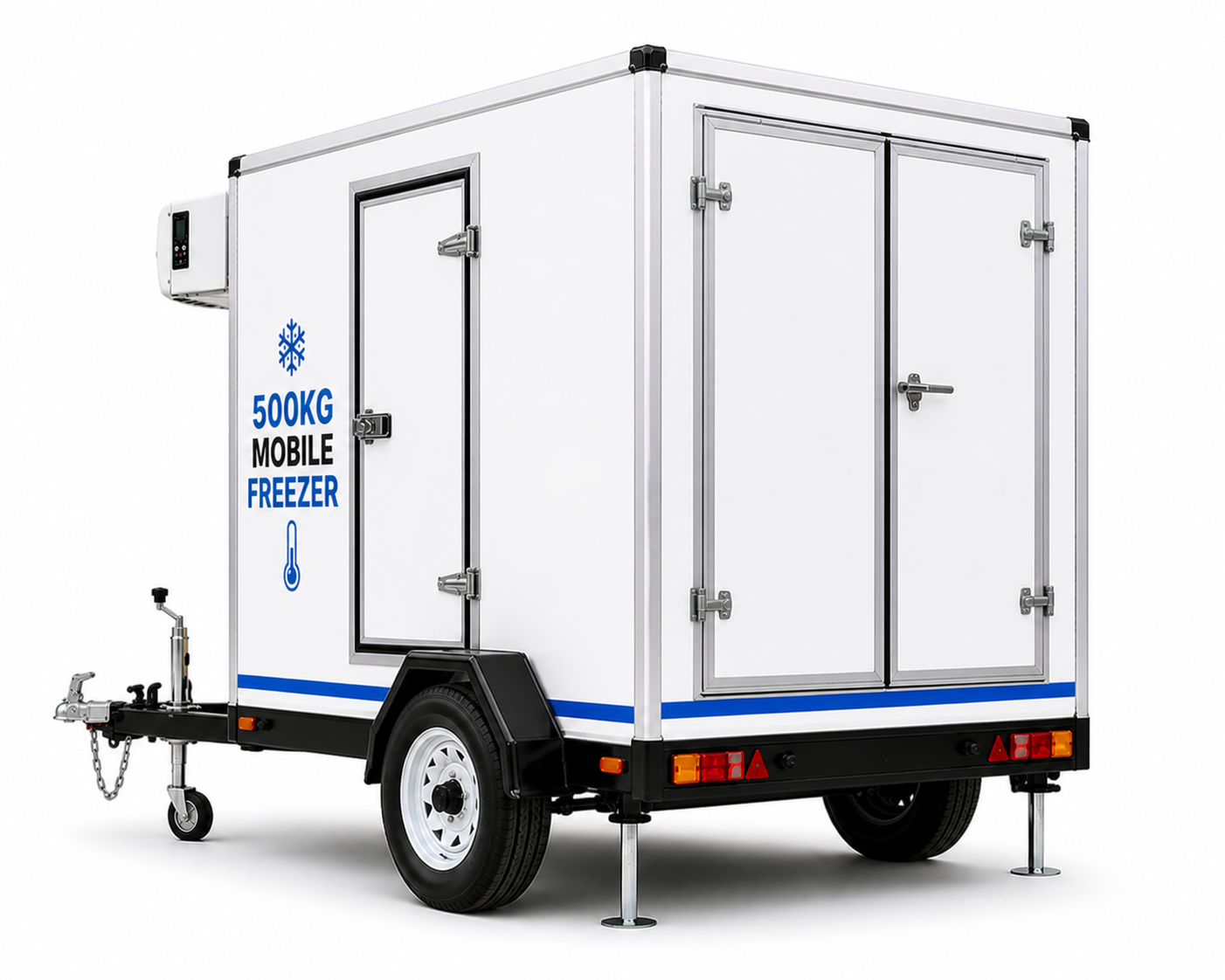

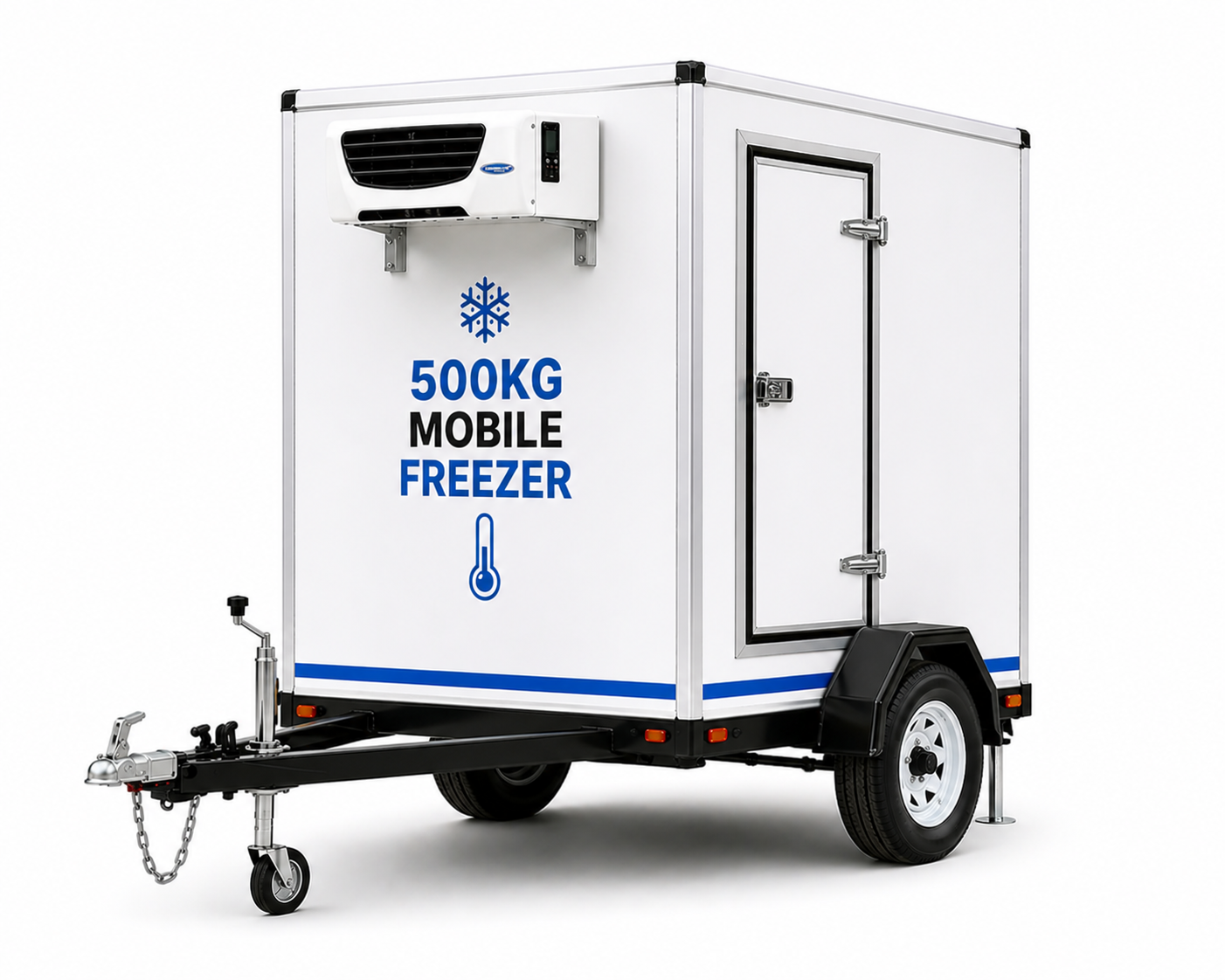

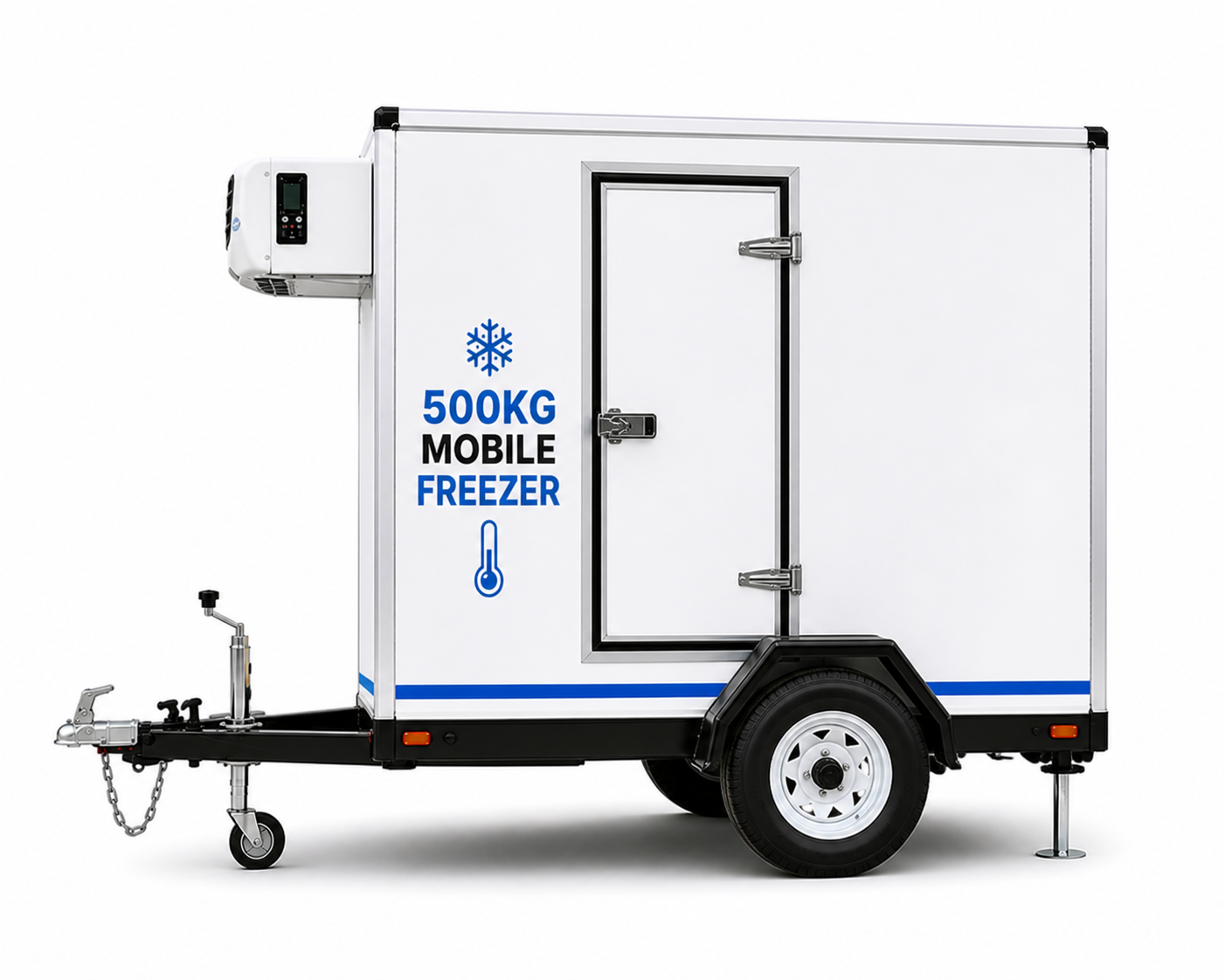

500KG Mobile Freezer
R 47 000
incl. VAT, ex-worksIn stock — ready for dispatch
Mobile freezer trailer with 500KG capacity, holding temperatures down to -18°C. Essential for ice cream, frozen meat, and seafood transport.
Key features
- Down to -18°C
- 100mm insulation
- Deep-freeze compressor
- Seafood/ice-cream rated
Specifications
1. GENERAL
- Type
- Mobile Deep-Freeze Trailer
- Capacity
- 500KG
- Temperature Range
- -18°C to 0°C (Deep-Freeze Range)
- GVM
- 1500kg
- Application
- Ice Cream, Frozen Meat, Seafood, Frozen Goods Transport
2. TRAILER STRUCTURE
- Chassis
- Heavy-Duty Galvanised Steel Trailer Frame
- Body
- Fully Enclosed Extra-Thick Insulated Box Body
- Floor
- Aluminium Checker Plate – Non-Slip, Easy Clean
- Tow Hitch
- 50mm Ball Hitch with Safety Chains
- Stabilisers
- Corner Stabiliser Jacks
- Wheels
- Road-Legal Tyres
- Exterior Lighting
- LED Road Lights
3. INSULATION & PANELS
- Panel Type
- Polyurethane (PU) Injected Sandwich Panels
- Panel Thickness
- 100mm – Deep-Freeze Grade (Thicker than Chiller)
- Door
- Heavy-Duty Insulated Deep-Freeze Access Door with Cam Lock
- Door Seal
- Double Perimeter Magnetic Gasket Seal
- Thermal Bridge
- Full Thermal Break at All Panel Joins and Corners
4. REFRIGERATION SYSTEM
- Compressor
- Commercial Deep-Freeze Condensing Unit
- Cooling Range
- -18°C to 0°C
- Refrigerant
- R404A or Equivalent
- Condenser
- Air-Cooled External Condenser
- Evaporator
- Internal Roof-Mounted Deep-Freeze Evaporator Coil
- Pull-Down Time
- Reaches -18°C within Operating Window
5. INTERIOR
- Wall Finish
- Stainless Steel Lining – Hygiene Grade
- Floor
- Aluminium Checker Plate with Drain Plug
- Ceiling
- Insulated Stainless Steel Ceiling Panel
- Internal Drain
- Floor Drain Point with Freeze-Resistant Plug
6. ELECTRICAL SYSTEM
- Primary Power
- 220V Shore Power (Standard Mains Plug)
- Temperature Control
- Digital Thermostat Controller with Freeze Guard
- Temperature Display
- Internal and External Digital Temp Readout
- Alarm
- High-Temperature and Power-Loss Audible Alarm
7. AVAILABLE UPGRADES
- Shelving
- Internal stainless steel freezer shelving available on request
- Generator
- Petrol or diesel generator set available on request
- Monitoring
- Remote temperature monitoring unit available on request
- Size
- Larger 1000KG or 1500KG capacity available on request
- Branding
- Custom exterior wrap available on request
